Explosion Proof Mobile Air Shower Tunnel Class 100 For Chemical Laboratory

  • 1
  • 2

Place of Origin : CHINA

Brand Name : K-LING

Certification : CE

Model Number : KEL-ASP1590T-3 SERISE

MOQ : 1SET

Price : NEGOATION

Packaging Details : PLOWOOD PACKING

Delivery Time : 15 WORKING DAYS AFTER DEPOSIT

Payment Terms : T/T, LC AT SIGHT

Supply Ability : 50UNITS/MONTH

Purificatiion Rank : Class 100- Class100000

Air speed : >24m/s

Sus nozzle : 48pcs -56pcs

Material : Steel with power coated /Sus304/Sus201

Door : Stainless steel 304 with half glass

Light : Purification Lamp

Product name : Air Shower Tunnel

other name : Explosion Proof air shower

Contact Now

Explosion - Proof Automatic Air Shower Tunnel For Chemical Laboratory



Quicky Detail



EXternal Size: 1590x3000x2300mm

Internal size : 1090x2930x2000mm

one row personal with three side blowing

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 6-50 person

SUS nozzle: 48pcs

Blower way: three size blowing

Air speed :>25m/s

Power: 380V/50HZ





Introduction:



Air Showertunnel can be divided into two kinds for different purpose,AS for operator and AS for goods. It has various modes of showering from single-side,double-side or top. It is also equipped with various kinds of doors in manual,in auto or shutter



Applications: it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.





operating features :



1 :  Microelectrics control system with LED display for the shower time.

2 :  the air shower duration time adjustable from 0-99second.

3 :  Infrared ray inductor for inside personal shower automatic from three side

4 :  Human being voice remind of user progress in chamber.

5 :  Emergency switch help you out of trouble, Comply with CE Test

6 :  Explsion- proof  fan use for espcieal purpose .





                                  KEL-AS1590T-3  Air Shower Tunnel

MODEL

KEL-AS1590T-3

External size (mm)

(WXDXH)

1590x3000x2300mm



Work zone (mm)

(WXDXH)

1090x2880x2000mm

Persons per cycle

 6-50 person

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

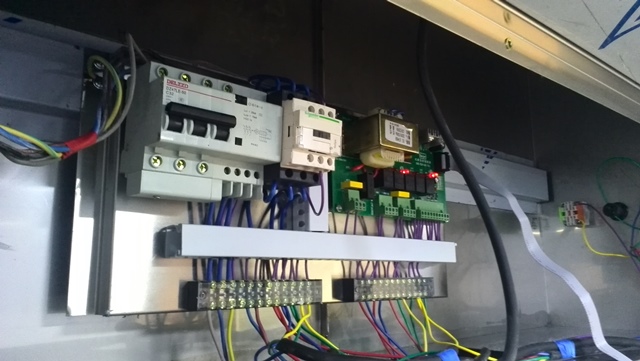

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark.

The power of Fan

380V/50HZ/750W(3 set)

Air flow of fan(m3/h)

  1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

   48 pcs

Wind speed(m/s)

  23-29m/s

Noise level(dB)

<62dB

LED Fluorescent Lamp

20wx3



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

 <220pa



Pre-filter

Size(mm)

775x380x17

Efficiency

  75% @ 0.5um

Resistance(pa)

  <30 Pa

Electrical

Power supply

  380v/50Hz

   Net power(kw)

    0.75X3 kw

Customer’s design is available.







Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
