Fluid Sealant HEPA Filter For Biological Clean Room
Quicky Detail
Media: Glass fiber
Frame: Aluminum
Gasket: Fluid Sealant
HEPA air filter efficiency: H10 - H14
HEPA filter size: 510x510x90
Pleat High : 96mm
Pleats Distance : 7-8PPI
Resistance:<200pa
Performace:
High purification rank, low resistance, easy install and excellent sealant effect
Applications area:
This air filters design for pharmaceutical and biotech industry applications.
Characteristics:
1: It is the finally filtration in clean room that use for filter the particles more than 0.3um
2: The media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3: The anodized aluminum frame so that it is anticorrosion in long time. The sealant around the media so that the air filter without any air leaking ,both side with screen.
4 The air filters can be tested and easily replaced without disturbing the module housing or risking bypass leakage.

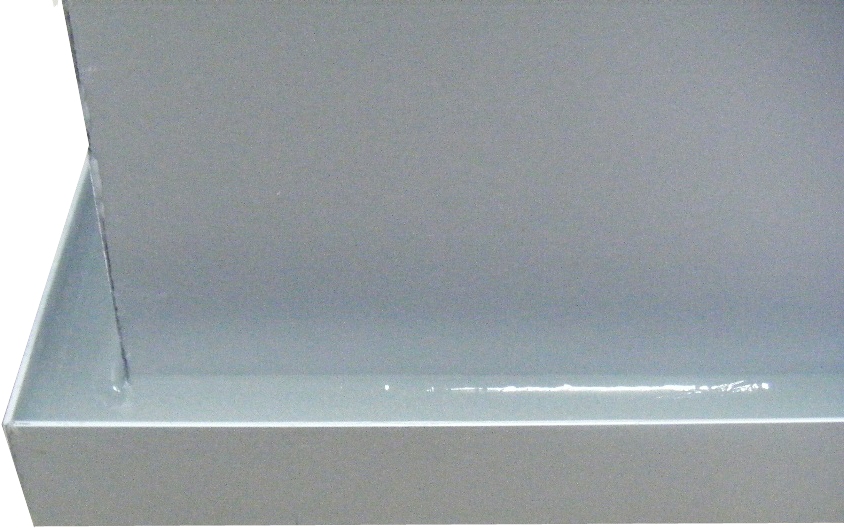

5: the downstream flange channel full with fluid gel so that increase the sealant. When the filter is installed, a knife edge on all four side of the housing penetrates the channel of gel to form an airtight seal. This gel is non-Newtonian liquids that with non-volatile and toxic, tasteless, endure acid and so on.
6: laser to scan the each air filter one by one.
7: the HEPA air filter efficiency range: H13, H14 99.97%-99.999%@0.3um (EN1822).
Dimension and parameter:
| Dimension (W*H*D) (mm) | Air flow (M3/h) | Media area (m2) | Holding dust(g) | Primary resistance (by0.5m/s) | Final resistance | Efficiency (0.3um) |
| 346x346x90 | 400 | 4.16 | 250 | <200pa | 400pa- 600pa | >99.99% H13-H14 |
| 510x510x90 | 90 | 9.42 | 570 | <200pa |
| 636x636x90 | 1450 | 14.9 | 900 | <200pa |
| 941x636x90 | 2150 | 21.22 | 1330 | <200pa |
| 1246x636x90 | 2850 | 29.33 | 1760 | <200pa |
Customized size is available.
Material and operation conditions:
| Media | Glass fiber media |
| Sealant | fluid sealant |
| Frame | Aluminum frame |
| Gasket | / |
| Pleat spacer | EVA hot glue |
| Efficiency | 99.97%-99.999% H13-H14 |
| Max temperature | 70°c |
| Max humidity | 80% |
| Frame | 90, 110,120mm |
