Class 1000 Clean Room Air Shower Tunnel 380V / 50HZ , 4 Person Clean Room Equipment
Air shower tunnel for Aerospace Industry:
Aerospace industries require the highest standards of cleanliness, including a Class 1000 environment or better. Airshowertunnel's advanced filtration technology prevents dust and other contamination from entering the clean room, resulting in better product quality and reliability.
Quicky detail
external size :1300x7500x2200mm
internal size : 790x7360x2000mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 20-50 person
SUS nozzle: 80-100pcs
Blower way: three size blower
Air speed :>25m/s
Power: 380V/50HZ
operating features :
1 :Microectronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.

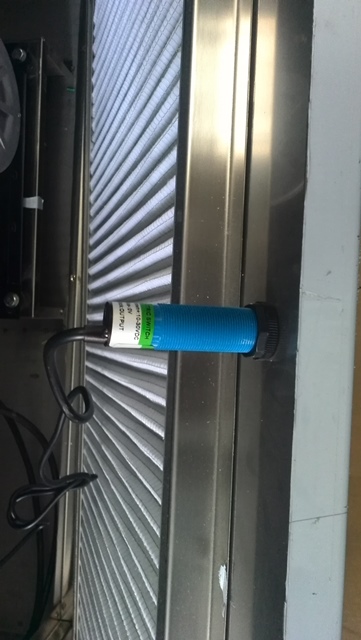

3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
6: Revolving door or sus304 steel frame with half glass swing door for your choose .
Parameter :
| KEL-AS1300T-7T Air Shower Tunnel |
| MODEL | KEL-AS1300T-7T |
| External size (mm) (WXDXH) | 1200x7500x2180 |
| Work zone (mm) (WXDXH) | 800x7360x1910 |
| Persons per cycle | 10-50 person |
| Air shower Duration | Factory set at 12 second (adjustable) |
| Air shower direction | Three side with blowing |
| Material (Option) | 1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
| Control system | 1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark |
| The power of Fan | 380V/50HZ/750W (6 sets) |
| Air flow of fan(m3/h) | 1300m3/h |
| Fan run (r/min) | 2800r/min |
| Nozzle in stain less steel | 100 pcs |
| Wind speed(m/s) | 23-29m/s |
| Noise level(dB) | <62dB |
| LED Fluorescent Lamp | 20wx6 |
| HEPA Filter | Size(mm) | 630X630X69mm |
| Efficiency | 99.99%@0.3um |
| Air velocity | 1000(m3/h) |
| Initial resistance(pa) | <220pa |
| Pre-filter | Size(mm) | 775x380x17 |
| Efficiency | 75% @ 0.5um |
| Resistance(pa) | <30 Pa |
| Electrical | Power supply | 380v/50Hz or 380v |
| Net power(kw) | 0.75X6 kw |
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
