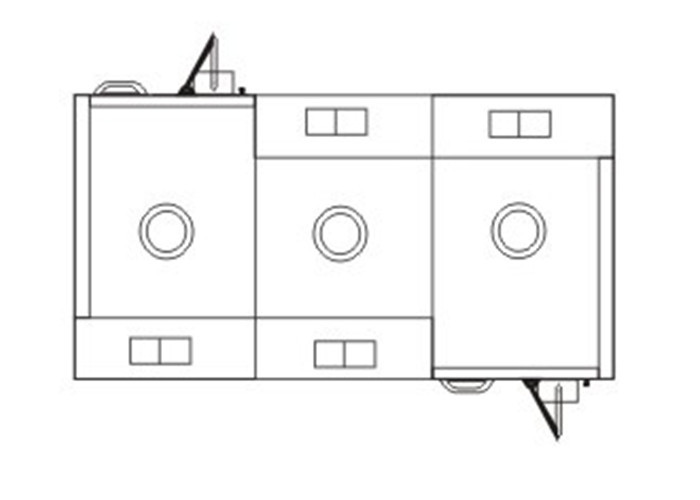

Z Type Clean Room Air Shower Tunnel Single Person With Both Side Blowing

KeLing Purification Technology Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Z Type Clean Room Air Shower Tunnel Single Person With Both Side Blowing

  • 1
  • 2
  • 3

Place of Origin : CHINA

Brand Name : K-LING

Certification : CE

Model Number : KEL-ASP1300T-3Z SERISE

MOQ : 1SET

Price : NEGOATION

Packaging Details : PLOWOOD PACKING

Delivery Time : 15 WORKING DAYS AFTER DEPOSIT

Payment Terms : T/T, LC AT SIGHT

Supply Ability : 50UNITS/MONTH

Control system : PLC contro system

Door : half glass with sus304 frame

Locker : electric interocker

Air speed : more than 24m/s

Noise : Less than 75dB

Blowing way : vertical or 3 side blowing

power : 380V/50HZ 4.5KW

Certificated : CE

Contact Now

Z Type Clean Room Air Shower Tunnel One Row Person With Both Side Blowing





Air shower tunnel for Semiconductor Manufacturing Industry



Semiconductor manufacturing requires a high level of cleanliness to ensure product quality. Airshowertunnel's HEPA filtration system removes



particles as small as 0.3 microns, ensuring a clean environment for manufacturing and handling sensitive electronic components.



Quicky detail



External Size: 1300x3000x2180mm

Internal size :  790X2900X1910

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 3-20 person

SUS nozzle:48 pcs

Blower way: two  size blower

Air speed :>25m/s

Power: 380V/50HZ





Introduction:



The greatest source of particulate contamination in a clean room is the operator air shower are installed between change areas and the clean room, the air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower, after you pass the air shower





Applications:   Semiconductor plant, microelectronics plant, bio-pharmaceutical plant, etc





operating features :



1 :  Microelelctrincs control system with LED display for the shower time.

2:  the air shower duration time adjustable from 0-99second.

3:  Infrared ray inductor for inside personal shower automatic from three side

4:  Human being voice remind of user progress in chamber.

5:  Emergency switch help you out of trouble, Comply with CE Test





                                  KEL-AS1300T-3Z  Air Shower Tunnel

MODEL

KEL-AS1300T-3Z

External size (mm)(WXDXH)

1300x7500x2180mm

Work zone (mm)(WXDXH)

790x2900x1910mm

Persons per cycle

   3-20 person

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Two side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark.

The power of Fan

380V/50HZ/750W

(3 sets)

Air flow of fan(m3/h)

    1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

   48 pcs

Wind speed(m/s)

   23-29m/s

Noise level(dB)

   <62dB

LED Fluorescent Lamp

20wx3



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

   <220pa



Pre-filter

Size(mm)

    775x380x17

Efficiency

  75% @ 0.5um

Resistance(pa)

   <30 Pa

Electrical

Power supply

    380v/50Hz

   Net power(kw)

     0.75X3 kw

Customer’s design is available.







Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
