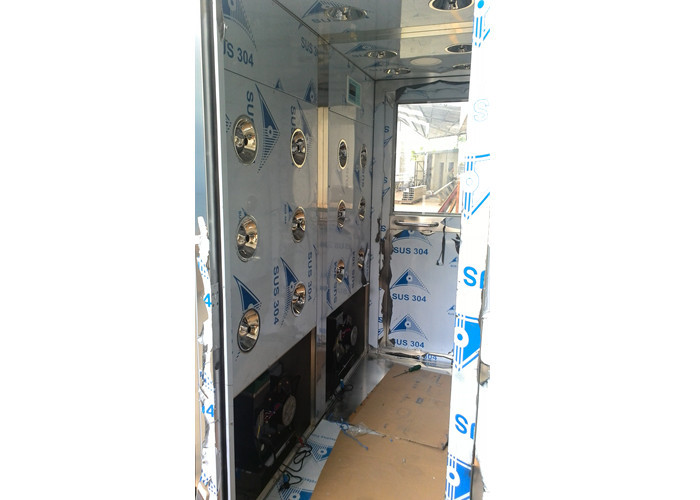

Explosion Proof Automatic Cleanroom Air Shower , Pharmaceutical Clean Rooms
Quickly detail
External Size: 1200x3000x2180mm
Internal size : 800x2930x1910mm
Single person with two side blowering
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 3-6 person
SUS nozzle: 36pcs
Blower way : two side blowing
Air speed :>25m/s
Power :380V/50HZ or 380V/60HZ 3 Phase.
Introduction:
cleanroom Air shower is a related equipment for clean workshop and clean room, which not only
removes dust from the surface of people and goods, but also plays as a role of air lock valve
to prevent unpurified air from flowing into the clean area. It can be used with all supporting
clean room and clean workshop.
Applications:
it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.
Operating features :
1: Microelectronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from two side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
6: Explosion proof fan for the special purpose.
| KEL-AS1200P Series |
| Model | KEL-AS1200-P3 |
| External size(mm) (WXDXH) | 1200x3000x2180 |
| Work zone (mm)(WXDXH) | 800x2930x1910 |
| Persons per cycle | 3-6 person |
| Air shower Duration | Factory set at 12 second (adjustable) |
| Material | Steel with white color epoxy power-coated or Stainless steel |
| Fan consumption | 0.75KWX3sets |
| Air flow of fan(m3/h) | 1300m3/h |
| Fan run (r/min) | 2800r/min |
| Nozzle in stain less steel | 36pcs |
| Wind speed(m/s) | > 22-27m/s |
| Noise level(dB) | <62dB |
| LED Fluorescent Lamp | 20wx3 |
| HEPA Filter | Size(mm) | 630X630X69mm |
| Efficiency | 99.99%@0.3um |
| Air velocity | 1000(m3/h) |
| Resistance | <220pa |
| Pre-filter | Size(mm) | 785x385x21 |
| Efficiency | 75% @ 5um |
| Resistance | <30 Pa |
| Electrical | Power supply | 380v/50Hz |
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
