Vinyl Strip Curatins laminar flow Clean Shed With H14 HEPA Filter
Quickly detail
External size : 3000x2000x2596mm
Internal Size: 2900x1900x2205mm
Purification rank: Class1000
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ or 110V/60HZ
Introduction :
Softwall clean room provides a very wide variety of standard sizes and cleanliness levels and almost any custom configurations or applications you request. A soft wall clean shed, made of removable anti-static vinyl strip curtains, it is the most cost-effective equipments available for any zone, needing a special filtration.which are of a modular build format, allows ease of installation and as a result to provide less downtime.
Application :
it is usually used in dispensing, sampling, and off-loading areas within pharmaceutical,
chemical and bio-chemical industries.The advantages of soft wall clean shed include
ease of access and ensuring the clean zone staying within specific cleanliness level need.
Operating features:
1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated
steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with
an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending
ceiling supports
3: The PVC anti-static curtain door allowing for easy passage of material and personnel in and
out of the clean area. The curtain terminated at a specific distance above the floor to allow
for exhaust of clean air out of the clean room.

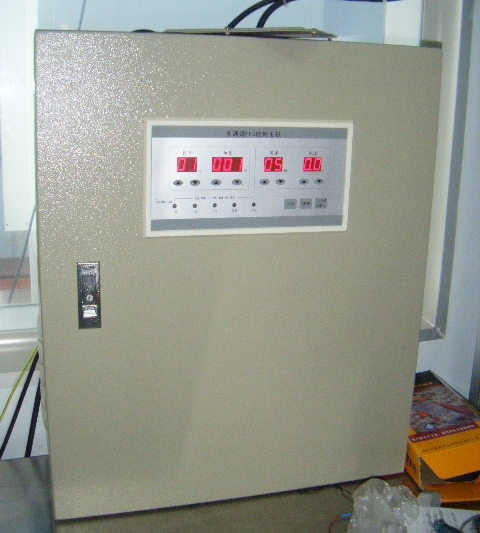

4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating
costs and has extremely low noise and vibration levels, improving the working conditions
in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation
technique to maximize surface area improves efficiency and extends the filter life.
Technical Parameter:
Products Parameter:
| Item | Prefabricated modular cleanroom |
| Purification Rank | Class 100 to class 100.000 |
| Dimension L*W*H | According client request |
| Fan Filter Unit | Dimension | 2x2,2x4,4x4 optional |
| Structural Material | Stainless steel, aluminum alloy, AI-Zn plate |
| Power Supply | 220V/50HZ AC |
| Air Filter | Mini-pleats HEPA /ULPA Air filter |
| Frame Material | Aluminum alloy/stainless steel201/304 |
| Wall Material | Acrylic /sandwich panel/anti-static acrylic |
| Ceiling | Aluminium –plastic panel , sandwich panel |
| Air Conditioner | Constant temperature air conditioning
Or Constant temperature and humidity air conditioning |
| Lighting | LED light or T5 (Optional ) |
| Air Shower | Optional |
| Pass Box | Optional |
| Air Flow Floor | Optional |
Customer’s design is available.
Our Service:
1: Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
